Rehlko KSD Series · water-cooled diesel

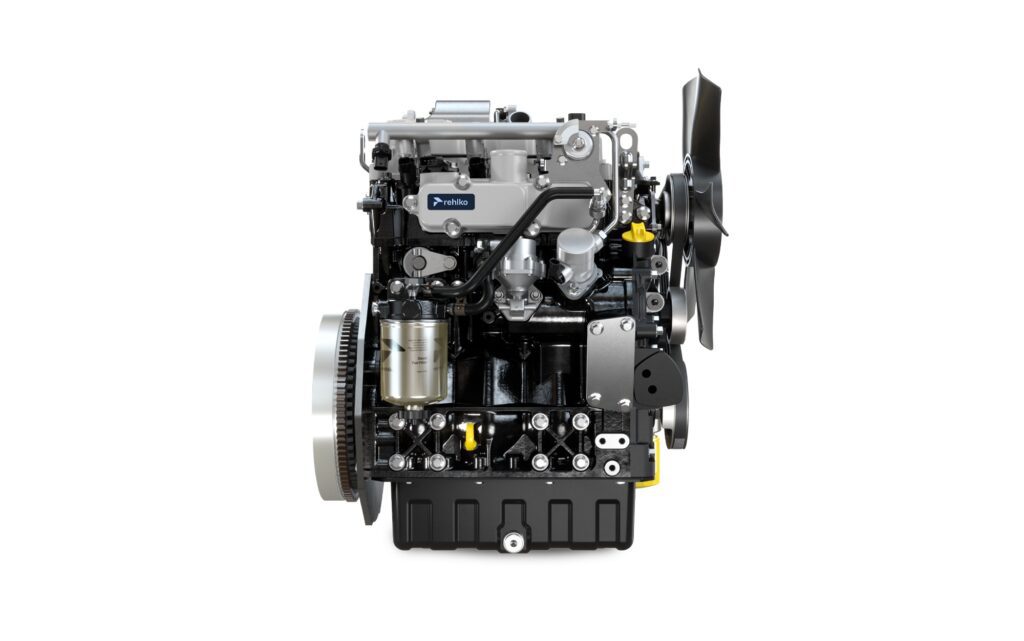

Rehlko KSD 1403TCA
Rehlko KSD 1403TCA is a compact, high-performance industrial diesel engine from Rehlko’s latest KSD Series, designed for non-road machinery where dependable power, efficient packaging and long-term service support are essential.
- Power
- 18.9 kW
- Speed
- 3000 rpm
- Max torque
- 120 Nm
- Dry weight
- 126 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KSD 1403TCA
The Rehlko KSD 1403TCA is part of Rehlko’s modern KSD Series—a diesel engine platform developed for global equipment markets and real-world duty cycles. The KSD range is positioned as simple, versatile and advanced, supporting straightforward integration for OEMs and operators who need reliable power with practical serviceability.
The KSD 1403TCA is well-suited to industrial and off‑highway equipment where uptime matters and the engine must perform consistently under variable working loads. It’s commonly specified for machinery and power units used in construction, agriculture, land management and general industrial applications—especially where compact packaging, robust operation and long-term parts support are key buying criteria.
If you’re selecting an engine for a new build or replacement, we can help confirm the best-fit configuration for your installation constraints, duty cycle and operating environment. Request a quote and share your machine type and application details so we can recommend the correct KSD 1403TCA build and supply package.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 18.9 kW
- Speeds
- 3000 rpm
- Max torque
- 120 Nm @ 1400 rpm
- Use
- Industrial
Engine
- Cylinders
- 3
- Aspiration
- Turbo aftercooled
- Injection
- Indirect (IDI), cr
- SAE connection
- SAE4/7.5
Emissions
- Standard
- Bharat TREM V/CEV V, China IV, EU Stage V, US Tier 4 Final
- EGR
- No
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 600 mm
- Width
- 482 mm
- Height
- 445 mm
- Dry weight
- 126 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
