Rehlko KSD Series · water-cooled diesel

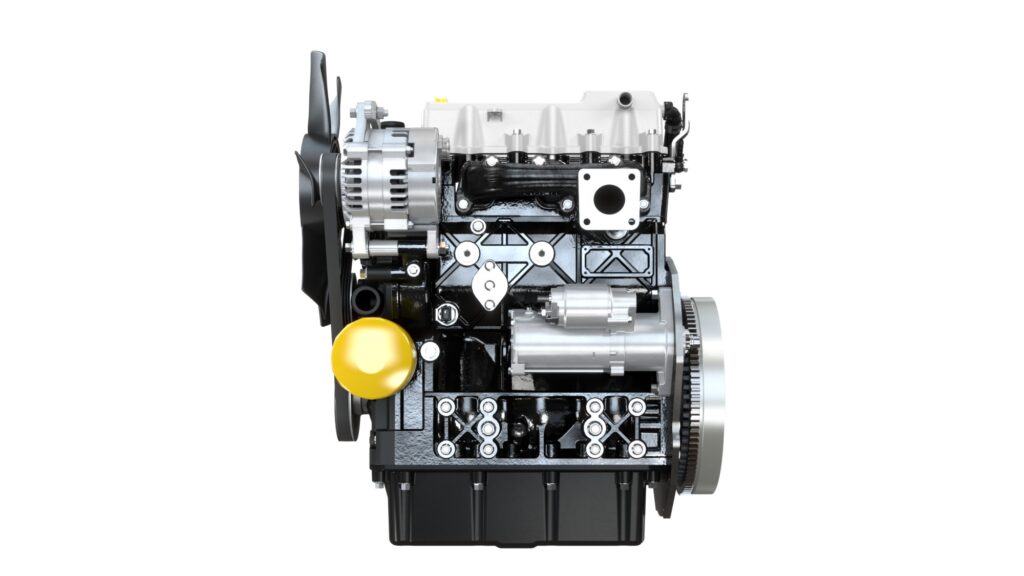

Rehlko KSD 1403NA
Rehlko KSD 1403NA is a compact, naturally aspirated diesel engine from the latest KSD platform—built to be simple, versatile and advanced for a wide range of industrial equipment applications. Ideal where reliable power, straightforward integration and long-term service support matter.
- Power
- 18.9 kW
- Speed
- 3000 rpm
- Max torque
- 90 Nm
- Dry weight
- 121 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KSD 1403NA
The Rehlko KSD 1403NA is part of Rehlko’s KSD Series—a modern diesel engine platform designed with a global equipment market in mind. Rehlko positions the KSD range as simple, versatile and advanced, making it a strong choice for OEMs and operators who need dependable diesel power with practical installation and serviceability.
As a naturally aspirated (NA) configuration, the KSD 1403NA is well suited to applications that prioritise robust, predictable performance and straightforward packaging. It’s commonly specified across industrial and off‑highway equipment where uptime, parts availability and support are critical—such as pumps, compressors, compact construction machinery, agricultural equipment and general industrial power units.
If you’re selecting an engine for a new build or replacement, we can help you confirm the best-fit configuration for your duty cycle, installation constraints and operating environment. Request a quote from Sleemans and share your application details (machine type, load profile, ambient conditions and any compliance requirements) so we can recommend the correct KSD 1403NA build and supply package.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 18.9 kW
- Speeds
- 3000 rpm
- Max torque
- 90 Nm @ 1800 rpm
- Use
- Industrial
Engine
- Cylinders
- 3
- Aspiration
- Natural
- Injection
- Indirect (IDI), cr
- SAE connection
- Options available
Emissions
- Standard
- Bharat TREM V/CEV V, China IV, EU Stage V, US Tier 4 Final
- EGR
- No
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 552 mm
- Width
- 482 mm
- Height
- 418 mm
- Dry weight
- 121 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
