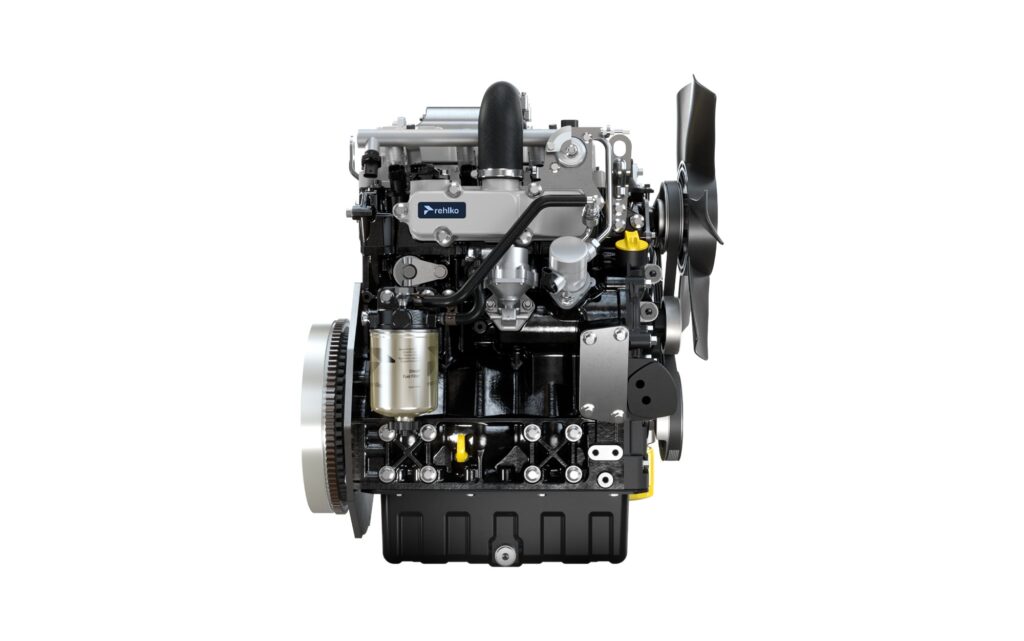

Rehlko KSD 1403TC
Rehlko KSD 1403TC is a compact turbocharged diesel engine from the latest KSD platform—built to be simple, versatile and advanced for demanding industrial equipment applications. A strong choice where higher performance in a compact package and dependable long-term support are key.
- Power
- 18.9 kW
- Speed
- 3000 rpm
- Max torque
- 90 Nm
- Dry weight
- 121 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KSD 1403TC
The Rehlko KSD 1403TC is part of Rehlko’s modern KSD Series—a diesel engine platform developed around a global equipment market and real-world customer requirements. Rehlko positions the KSD range as simple, versatile and advanced, making it well suited to OEMs and operators who need reliable power with practical integration and serviceability.
As a turbocharged (TC) configuration, the KSD 1403TC is typically selected where you want stronger performance from a compact engine footprint—ideal for equipment that sees variable loads and needs responsive power delivery. Common applications include pumps, compressors, hydraulic power units, compact construction machinery, agricultural equipment and general industrial power packs, where uptime and parts support are critical.
If you’re specifying an engine for a new build or replacement, we can help you confirm the correct configuration for your duty cycle, installation constraints, ambient conditions and target market requirements. Request a quote and share your machine type and load profile so we can recommend the best-fit KSD 1403TC build and supply package.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 18.9 kW
- Speeds
- 3000 rpm
- Max torque
- 90 Nm @ 1800 rpm
- Use
- Industrial
Engine
- Cylinders
- 3
- Aspiration
- Turbocharged
- Injection
- Indirect (IDI), cr
- SAE connection
- Options available
Emissions
- Standard
- Bharat TREM V/CEV V, China IV, EU Stage V, US Tier 4 Final
- EGR
- No
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 552 mm
- Width
- 482 mm
- Height
- 418 mm
- Dry weight
- 121 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
