Lister Petter Starlite Series · water-cooled diesel

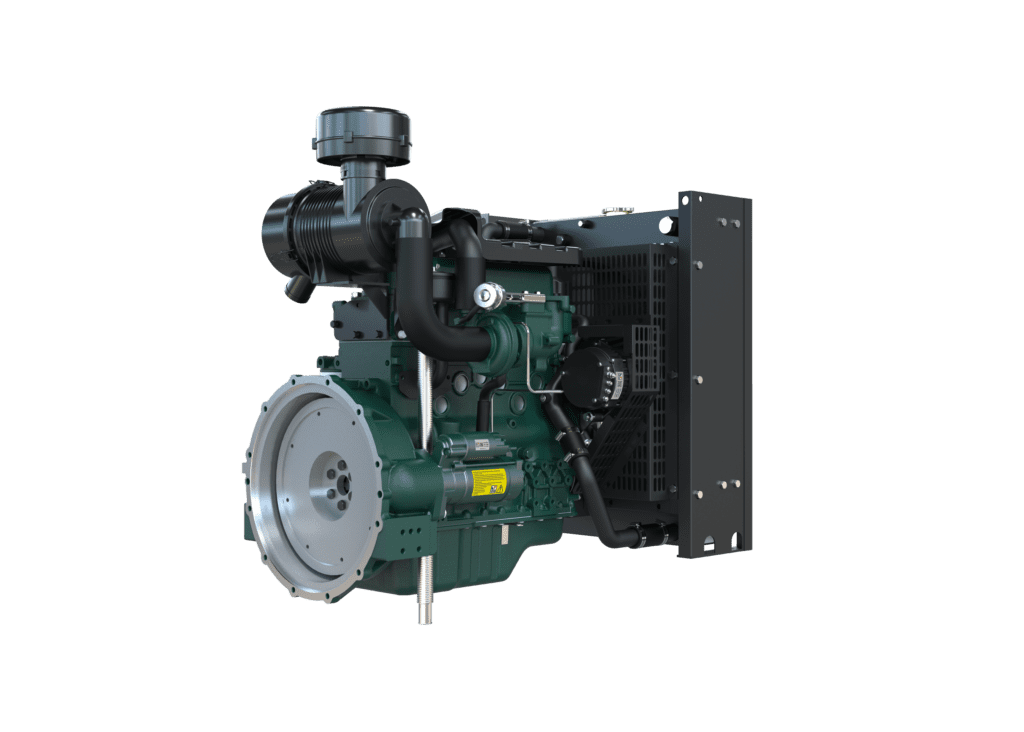

Lister Petter SA435i1
Lister Petter SA435i1 is a heavy-duty Stage II industrial diesel engine delivering 73.5 kW at 2600 rpm. A 4‑cylinder, 3.5L, turbocharged, water‑cooled direct injection engine, suited to demanding industrial equipment packages needing strong torque and dependable high‑utilisation performance.
- Power
- 29.1 kW
- Speed
- 2600 rpm
- Max torque
- 136.7 Nm
- Dry weight
- 245 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Lister Petter SA435i1
The Lister Petter SA435i1 is part of Lister Petter’s Starlite Series (Stage II) industrial engine range, built for non-road machinery and equipment packages where robust performance, serviceability and proven industrial design are priorities. This model is rated at 73.5 kW at 2600 rpm and uses a 4-cylinder, 3.5L configuration with direct fuel injection and water cooling, making it a strong choice for demanding duty cycles in industrial environments.
With a turbocharged air system, the SA435i1 is well-suited to applications that need higher output from a compact engine package, particularly where equipment operates under load for extended periods. In practical terms, it’s a solid option for OEM builds and re-power projects where reliability and maintainability matter as much as headline power.
For like-for-like replacement, the SA435 platform and i1 designation are the critical identifiers for matching the correct build specification and supply package. Share your application details and any existing engine plate information, and we’ll help confirm the right configuration and ancillaries before quoting.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 29.1 kW
- Speeds
- 2600 rpm
- Max torque
- 136.7 Nm @ 2000 rpm
- Use
- Industrial
Engine
- Cylinders
- 4
- Aspiration
- Natural
- Injection
- Direct (DI), mechanical
- SAE connection
- SAE4/7.5
Emissions
- Standard
- Non-compliant (fuel optimised)
- EGR
- No
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 1030 mm
- Width
- 590 mm
- Height
- 765 mm
- Dry weight
- 245 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
Free datasheet
Your SA435i1, on one page.
Pick your set-up and we’ll email you a PDF datasheet with the full specification and your configuration, ready to share or add to a tender. Want a price too? Tick the box and the engine team will quote for it.
- Full Lister Petter specification
- Your speed, start and application
- Dimensions and weight
- Prepared in your name
Genuine spare partsFilters, gaskets and service parts for Lister Petter engines, sourced and shipped by us.Find a part →Servicing and set-upSpeed, governor and start set up before it ships, and help with servicing after.Ask the team →One shipment, worldwideAdd parts, a generator or other engines and we'll ship it all together, anywhere in the world.How it works →Technical helpFitting, running or fault-finding: talk to someone who knows the SA435i1.Get in touch →
