Lister Petter Starlite Series · water-cooled diesel

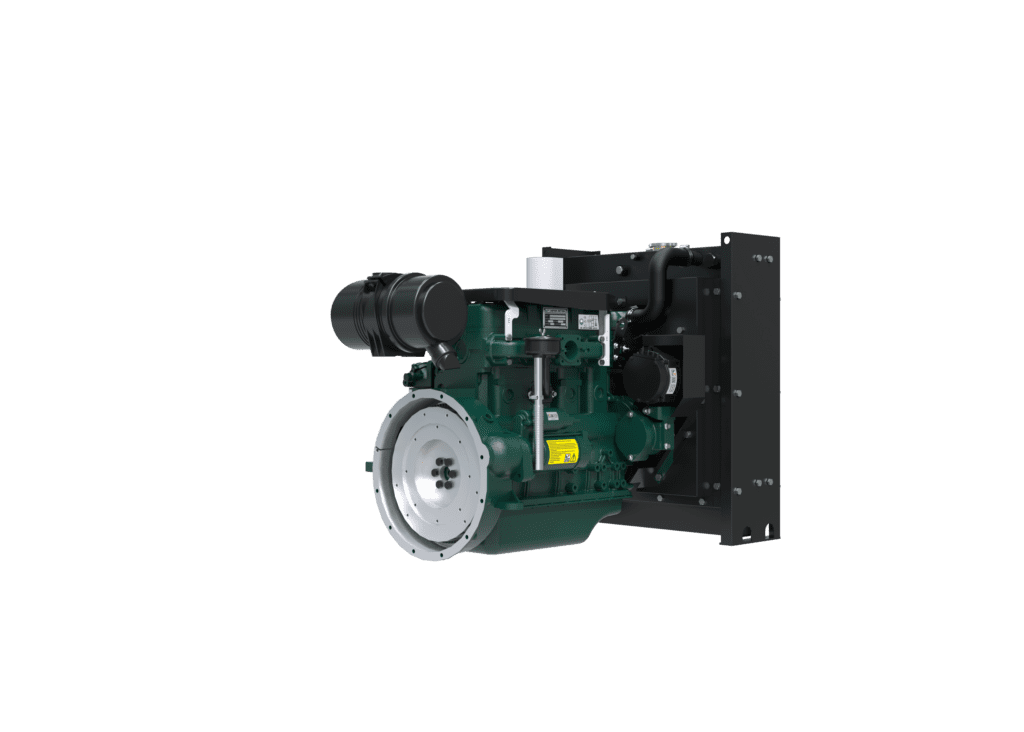

Lister Petter SA432i1

Lister Petter SA432i1 is a dependable Stage II industrial diesel engine delivering 45.0 kW at 2600 rpm. A 4‑cylinder, 3.2L, naturally aspirated, water‑cooled direct injection engine, suited to industrial equipment packages needing robust mid-speed performance with straightforward installation and servicing.

Power
45 kW
Speed
2600 rpm
Max torque
195 Nm
Dry weight
302 kg
Non-EU marketsIndustrial
  • Configured to your speed, start and shaft
  • Genuine parts and servicing support
  • Talk it through: +44 (0) 1626 778 266

About the Lister Petter SA432i1

The Lister Petter SA432i1 is part of Lister Petter’s Starlite Series (Stage II) industrial engine range, designed for non-road machinery and equipment packages where reliability, serviceability and proven industrial design are priorities. This model is rated at 45.0 kW at 2600 rpm and uses a 4-cylinder, 3.2L configuration with direct fuel injection and water cooling, making it a practical choice for a wide range of industrial duty cycles.
As a naturally aspirated engine, the SA432i1 suits applications where consistent day-to-day performance and mechanical simplicity are key — particularly where equipment runs under steady load and you want a straightforward specification that’s easy to integrate and maintain. In the SA432 family, the i1 sits as a solid mid-speed option, offering dependable output without the added complexity of turbocharging.
For like-for-like replacement, the SA432 platform and i1 designation are the critical identifiers for matching the correct build specification and supply package. Share your application details and any existing engine plate information, and we’ll help confirm the right configuration and ancillaries before quoting.

Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.

Performance

Power
45 kW
Speeds
2600 rpm
Max torque
195 Nm @ 1700 rpm
Use
Industrial

Engine

Cylinders
4
Aspiration
Natural
Injection
Direct (DI), mechanical
SAE connection
SAE4/7.5

Emissions

Standard
Non-compliant (fuel optimised)
EGR
No
DOC
No
DPF
No

Cooling

Type
Water-cooled
Radiator
Yes
Fan
Yes
Charge air cooler
Yes

Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.

Dimensions

Length
1155 mm
Width
670 mm
Height
845 mm
Dry weight
302 kg

Need an installation drawing? Ask and we’ll send the drawing for your configuration.

Length 1155Width 670Height 845
