Lister Petter Starlite Series · water-cooled diesel

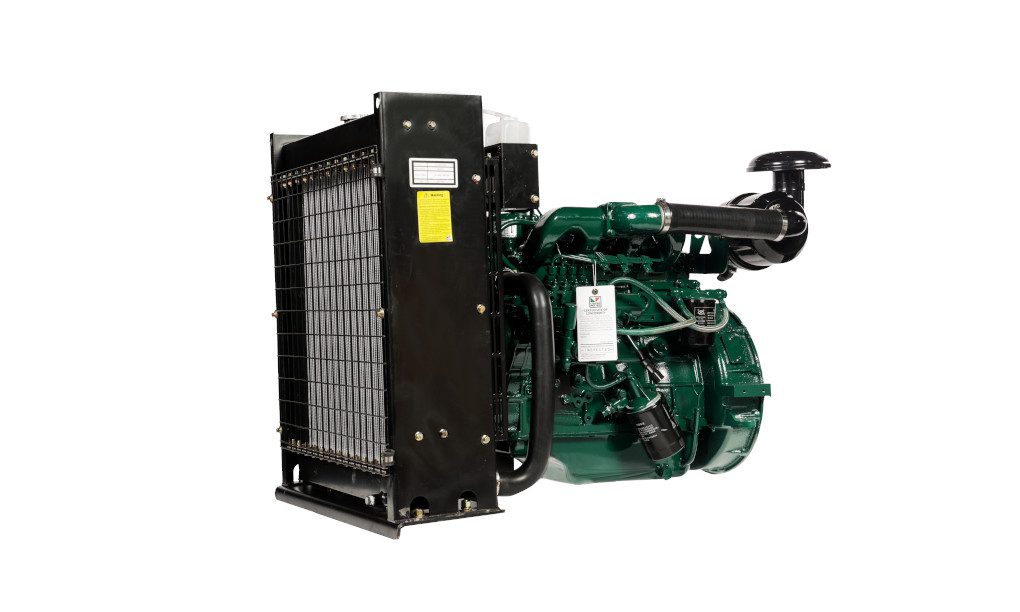

Lister Petter SA423i1

Lister Petter SA423i1 is a robust Stage II industrial diesel engine delivering 29.1 kW at 2600 rpm. A 4‑cylinder, 2.3L, naturally aspirated, water‑cooled direct injection engine, suited to industrial equipment packages needing dependable mid-range power and straightforward servicing.

Power
29.1 kW
Speed
2600 rpm
Max torque
136.7 Nm
Dry weight
245 kg
Non-EU marketsIndustrial
  • Configured to your speed, start and shaft
  • Genuine parts and servicing support
  • Talk it through: +44 (0) 1626 778 266

About the Lister Petter SA423i1

The Lister Petter SA423i1 is part of Lister Petter’s Starlite Series (Stage II) industrial engine range, designed for non-road machinery and equipment packages where reliability, serviceability and proven mechanical simplicity are priorities. This model is rated at 29.1 kW at 2600 rpm and uses a 4-cylinder, 2.3L configuration with direct fuel injection and water cooling, making it a practical choice for a wide range of industrial duty cycles.
As a naturally aspirated engine, the SA423i1 is well suited to equipment builders who want a straightforward specification that’s easy to integrate and maintain. In the Starlite family, it sits in a useful mid-power band for compact industrial machinery, offering dependable performance without the additional complexity of turbocharging.
For like-for-like replacement, the SA423 platform and i1 designation are the critical identifiers for matching the correct build specification and supply package. Share your application details and any existing engine plate information, and we’ll help confirm the right configuration and ancillaries before quoting.

Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.

Performance

Power
29.1 kW
Speeds
2600 rpm
Max torque
136.7 Nm @ 2000 rpm
Use
Industrial

Engine

Cylinders
4
Aspiration
Natural
Injection
Direct (DI), mechanical
SAE connection
SAE4/7.5

Emissions

Standard
Non-compliant (fuel optimised)
EGR
No
DOC
No
DPF
No

Cooling

Type
Water-cooled
Radiator
Yes
Fan
Yes
Charge air cooler
No

Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.

Dimensions

Length
1030 mm
Width
590 mm
Height
765 mm
Dry weight
245 kg

Need an installation drawing? Ask and we’ll send the drawing for your configuration.

Length 1030Width 590Height 765
