Lister Petter Mercury Max · water-cooled diesel
Lister Petter LP430EVi1

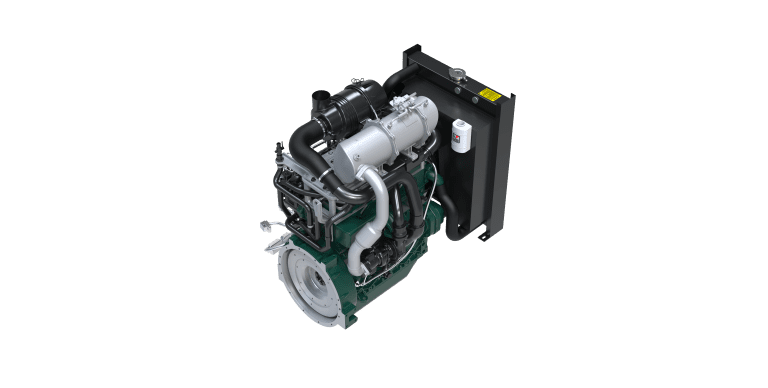

Lister Petter LP430EVi1 is an EU Stage V industrial diesel engine delivering 55.8 kW at 2200 rpm. A 4‑cylinder, 3.0L, turbocharged, water‑cooled engine with HPCR + ECU control and EGR + DOC + DPF aftertreatment, designed for demanding OEM equipment packages and high‑utilisation industrial duty.
- Power
- 55.8 kW
- Speed
- 2200 rpm
- Max torque
- 320 Nm
- Dry weight
- 300 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Lister Petter LP430EVi1
The Lister Petter LP430EVi1 is part of Lister Petter’s Mercury Max (EU Stage V) industrial engine range, built for modern non-road machinery and packaged equipment where emissions compliance, durability and strong low-speed output are essential. This model is rated at 55.8 kW at 2200 rpm and uses a 4-cylinder, 3.0L configuration with high-pressure common rail (HPCR) fuel injection and ECU governing to deliver controlled performance across demanding duty cycles.
For equipment builders and repower projects, the LP430EVi1 combines water cooling with a turbocharged air system, supporting robust performance in a compact industrial package. In the Stage V Mercury Max range, this model is specified with EGR + DOC + DPF aftertreatment, making it suitable for applications where compliance is non-negotiable and the engine must integrate cleanly into an OEM installation.
For like-for-like replacement, the LP430 platform and EVi1 designation are the critical identifiers to match the correct Stage V configuration and supply package. Share your application details and any engine plate information, and we can help confirm the correct configuration, ancillaries and installation considerations before quoting.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 55.8 kW
- Speeds
- 2200 rpm
- Max torque
- 320 Nm @ 1500 rpm
- Use
- Industrial
Engine
- Cylinders
- 4
- Aspiration
- Turbocharged
- Injection
- Direct (DI), common rail
- SAE connection
- SAE4/7.5
Emissions
- Standard
- EU Stage V
- EGR
- Yes
- DOC
- Yes
- DPF
- Yes
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 1152 mm
- Width
- 662 mm
- Height
- 918 mm
- Dry weight
- 300 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
