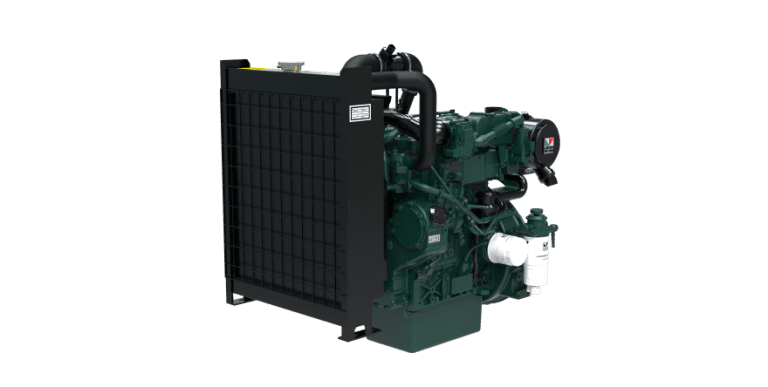

Lister Petter LP322EVi2
Lister Petter LP322EVi2 is a compact EU Stage V industrial diesel engine delivering 55.8 kW at 2300 rpm. A 3‑cylinder, 2.2L, turbocharged & intercooled, water‑cooled engine with HPCR + ECU control, designed for demanding OEM equipment packages and high‑utilisation industrial duty.
- Power
- 55.8 kW
- Speed
- 2300 rpm
- Max torque
- 280 Nm
- Dry weight
- 288 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Lister Petter LP322EVi2
The Lister Petter LP322EVi2 is part of Lister Petter’s Mercury Max (EU Stage V) industrial engine range, built for modern non-road machinery and packaged equipment where emissions compliance, power density and durability are essential. This model is rated at 55.8 kW at 2300 rpm and uses a 3-cylinder, 2.2L configuration with high-pressure common rail (HPCR) fuel injection and ECU governing to deliver controlled performance across demanding duty cycles.
For equipment builders and repower projects, the LP322EVi2 combines water cooling with a turbocharged & intercooled air system, supporting strong output in a compact package. In the Stage V Mercury Max range, this model is specified with EGR + DOC + DPF aftertreatment, making it suitable for applications where compliance is non-negotiable and the engine must integrate cleanly into an OEM installation.
For like-for-like replacement, the LP322 platform and EVi2 designation are the critical identifiers to match the correct Stage V configuration and supply package. Share your application details and any engine plate information, and we can help confirm the correct configuration, ancillaries and installation considerations before quoting.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 55.8 kW
- Speeds
- 2300 rpm
- Max torque
- 280 Nm @ 1600 rpm
- Use
- Industrial
Engine
- Cylinders
- 3
- Aspiration
- Turbo aftercooled
- Injection
- Direct (DI), common rail
- SAE connection
- SAE4/7.5
Emissions
- Standard
- EU Stage V
- EGR
- Yes
- DOC
- Yes
- DPF
- Yes
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- Yes
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 1073 mm
- Width
- 607 mm
- Height
- 935 mm
- Dry weight
- 288 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
