Hatz F Series · water-cooled diesel

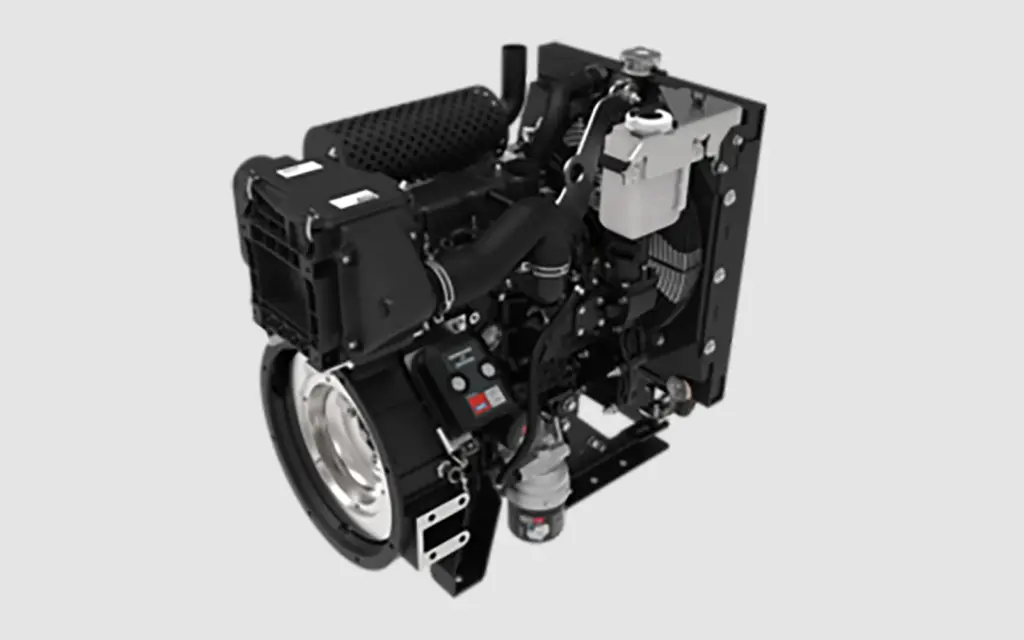

Hatz 3F35E
Hatz 3F35E is a compact liquid-cooled, 3-cylinder, 4-stroke industrial diesel engine with 1.102L displacement. From the Hatz F‑Series datasheet it delivers up to 18.4 kW / 24.6 hp at 3000 rpm (variable speed) and is also specified for constant-speed generator duty at 10.8 kW /…
- Power
- 18.4 kW
- Speed
- 3000 rpm
- Max torque
- 70 Nm
- Dry weight
- 141 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Hatz 3F35E
The Hatz 3F35E is part of the Hatz F‑Series of compact industrial diesels, designed for OEM equipment where installation space is tight but durability and serviceability still matter. The datasheet specifies the 3F35E as a liquid-cooled 4-stroke diesel engine with 3 cylinders and 1.102L displacement, giving you smoother running than a single-cylinder platform while keeping the overall package compact.
For combustion and fuel delivery, the datasheet lists mechanical indirect injection in a swirl chamber, which is typically favoured in compact industrial engines for stable operation and proven field reliability. Performance is shown in two duty contexts: for variable-speed applications, the 3F35E is rated up to 18.4 kW / 24.6 hp at 3000 rpm; for constant-speed generator applications, it’s listed at 10.8 kW / 14.5 hp (1800 rpm standby) and 9.4 kW / 12.6 hp (1800 rpm prime). That makes it a practical choice whether you’re driving equipment directly or packaging it into a genset where continuous output definitions matter.
As with all the pages you’re building, keeping the exact model code 3F35E is key for correct supply (governor type, speed setting, flywheel housing, and installation dimensions). If you tell me whether you’re selling it primarily as variable-speed or genset constant-speed, I can make the first paragraph and spec emphasis match your typical buyer intent.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 18.4 kW
- Speeds
- 3000 rpm
- Max torque
- 70 Nm @ 2200 rpm
- Use
- Generator drive, Industrial
Engine
- Cylinders
- 3
- Aspiration
- Natural
- Injection
- Indirect (IDI), mechanical
- SAE connection
- SAE5/6.5
Emissions
- Standard
- EU Stage V, US Tier 4 Final
- EGR
- No
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 626 mm
- Width
- 449 mm
- Height
- 670 mm
- Dry weight
- 141 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
