Rehlko · three to four cylinder diesel

Rehlko KDI Series

Three to four cylinder, water-cooled Rehlko engines from 30 to 105 kW. 18 models, compared side by side below.

Power
30–105 kW
Dry weight
210–394 kg
Models
18
Compare the modelsRequest a quote

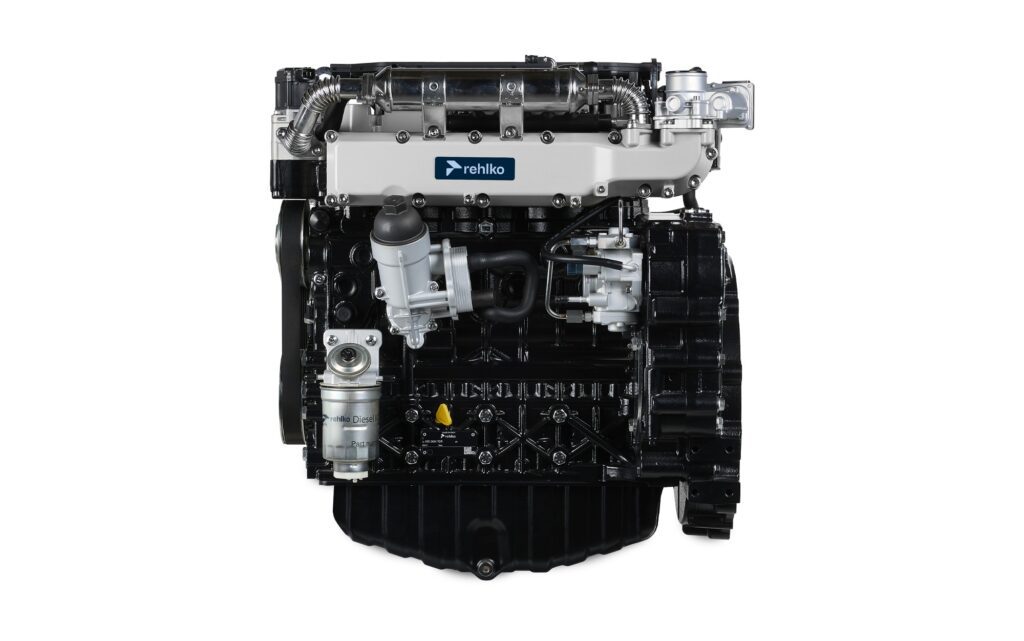

Rehlko KDI-TCP 3404E5/22 diesel engine
Every Rehlko KDI Series engineWater-cooled

Side by side

Compare the Rehlko KDI Series

ModelKDI-M 1903EA/26View specs →KDI‑M2504EA/26View specs →KDI-TC 1903E5/26View specs →KDI-TCF 1903U4/26View specs →KDI-TCR 1903E5/26View specs →KDI‑TCQ 1903U3/26View specs →KDI-TCR HP 1903E5/26View specs →KDI-TCF 2504U4/26View specs →KDI-TCK 2504U3/26View specs →KDI-TCL 3404U4/22View specs →KDI-TCN 3404E5/22View specs →KDI-TCR 2504E5/26View specs →KDI-TCP 3404E5/22CView specs →KDI-TCV 3404U4/22BView specs →KDI-TCP 3404E5/22EView specs →KDI-TCV 3404U4/22CView specs →KDI-TCV 3404U4/22View specs →KDI-TCP 3404E5/22View specs →
Power30 kW36.4 kW37 kW42 kW42 kW42 kW50 kW55.4 kW55.4 kW55.4 kW55.4 kW55.4 kW75 kW75 kW90 kW90 kW100 kW105 kW
Speed2600 rpm2600 rpm3000 rpm2600 rpm2600 rpm2600 rpm2600 rpm2600 rpm2600 rpm2200 rpm2200 rpm2600 rpm2200 rpm2200 rpm2200 rpm2200 rpm2200 rpm2200 rpm
Max torque133 Nm @ 1500 rpm170 Nm @ 1500 rpm170 Nm @ 1500 rpm225 Nm @ 1500 rpm225 Nm @ 1500 rpm225 Nm @ 1500 rpm250 Nm @ 1500 rpm300 Nm @ 1500 rpm300 Nm @ 1500 rpm375 Nm @ 1400 rpm465 Nm @ 1100 rpm315 Nm @ 1500 rpm490 Nm @ 1400 rpm475 Nm @ 1500 rpm550 Nm @ 1400 rpm480 Nm @ 1400 rpm500 Nm @ 1400 rpm650 Nm @ 1400 rpm
EmissionsEU Stage IIIA EQEU Stage IIIA EQBharat TREM V/CEV V, China IV, EU Stage IV, US Tier 4 FinalEU Stage IIIB, US Tier 4 FinalBharat TREM V/CEV V, China IV, EU Stage IV, US Tier 4 FinalUS Tier 3 EQUS Tier 4 FinalEU Stage IIIB, US Tier 4 FinalEU Stage IIIA EQ, US Tier 3 EQEU Stage IIIB, US Tier 4 FinalEU Stage V, US Tier 4 FinalBharat TREM V/CEV V, China IV, EU Stage V, US Tier 4 FinalEU Stage V, US Tier 4 FinalEU Stage IV, US Tier 4 FinalEU Stage IV, US Tier 4 FinalEU Stage IV, US Tier 4 FinalEU Stage IV, US Tier 4 FinalEU Stage V, US Tier 4 Final
Cylinders343333344444444444
CoolingWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWaterWater
AspirationNaturalNaturalTurbochargedTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooledTurbo aftercooled
InjectionDirect (DI), mechanicalDirect (DI), mechanicalDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common railDirect (DI), common rail
L × W × H598 × 452 × 667 mm704 × 452 × 667 mm598 × 530 × 726 mm598 × 530 × 726 mm598 × 530 × 726 mm598 × 530 × 726 mm598 × 530 × 726 mm702 × 523 × 720 mm704 × 523 × 720 mm726 × 576 × 816 mm726 × 576 × 816 mm704 × 523 × 720 mm726 × 576 × 816 mm726 × 576 × 816 mm726 × 576 × 816 mm726 × 576 × 816 mm726 × 576 × 816 mm726 × 576 × 816 mm
Dry weight210 kg244 kg233 kg233 kg233 kg233 kg233 kg267 kg267 kg394 kg394 kg267 kg394 kg394 kg394 kg394 kg394 kg394 kg

Figures are manufacturer published data. We’ll confirm the exact spec for your set-up with your quote. Still not sure which one? Tell us the machine and we’ll recommend one →
