Rehlko KDI Series · water-cooled diesel

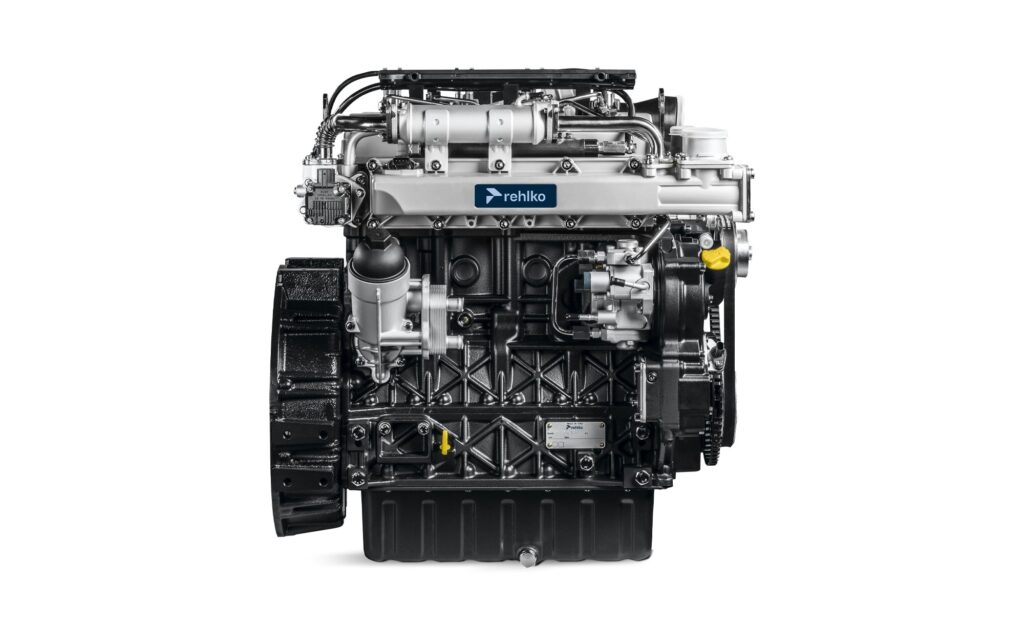

Rehlko KDI-TCR 2504E5/26
Rehlko KDI‑TCR 2504E5/26 is a compact 4‑cylinder Stage V industrial diesel engine for off‑highway machinery and OEM equipment packages, designed for clean emissions compliance and dependable high‑utilisation operation.
- Power
- 55.4 kW
- Speed
- 2600 rpm
- Max torque
- 315 Nm
- Dry weight
- 267 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KDI-TCR 2504E5/26
The Rehlko KDI‑TCR 2504E5/26 is a KDI-series 4-cylinder industrial diesel engine configured for EU Stage V non-road applications. It’s intended for modern off-highway machinery and packaged equipment where you need a compact installation footprint, robust performance for demanding duty cycles, and an engine platform that supports current emissions requirements.
The “2504” platform identifies the 4-cylinder architecture used across the KDI range. The “E5/26” designation is the key identifier for matching the correct Stage V build specification and supply package — particularly important for like-for-like replacement and repower projects, where the exact variant determines the correct emissions configuration, calibration and installation requirements.
For OEM builds and replacements, the KDI 2504 platform is commonly selected where service access and long-term maintainability are priorities alongside compliance. Share your application details (duty cycle, installation constraints, and any existing engine plate information) and we’ll help confirm the correct configuration and ancillaries before quoting.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 55.4 kW
- Speeds
- 2600 rpm
- Max torque
- 315 Nm @ 1500 rpm
- Use
- Industrial
Engine
- Cylinders
- 4
- Aspiration
- Turbo aftercooled
- Injection
- Direct (DI), common rail
- SAE connection
- SAE4/7.5
Emissions
- Standard
- Bharat TREM V/CEV V, China IV, EU Stage V, US Tier 4 Final
- EGR
- Yes
- DOC
- Yes
- DPF
- Yes
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- Yes
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 704 mm
- Width
- 523 mm
- Height
- 720 mm
- Dry weight
- 267 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
Free datasheet
Your KDI-TCR 2504E5/26, on one page.
Pick your set-up and we’ll email you a PDF datasheet with the full specification and your configuration, ready to share or add to a tender. Want a price too? Tick the box and the engine team will quote for it.
- Full Rehlko specification
- Your speed, start and application
- Dimensions and weight
- Prepared in your name
Genuine spare partsFilters, gaskets and service parts for Rehlko engines, sourced and shipped by us.Find a part →Servicing and set-upSpeed, governor and start set up before it ships, and help with servicing after.Ask the team →One shipment, worldwideAdd parts, a generator or other engines and we'll ship it all together, anywhere in the world.How it works →Technical helpFitting, running or fault-finding: talk to someone who knows the KDI-TCR 2504E5/26.Get in touch →
