Rehlko KDI Series · water-cooled diesel

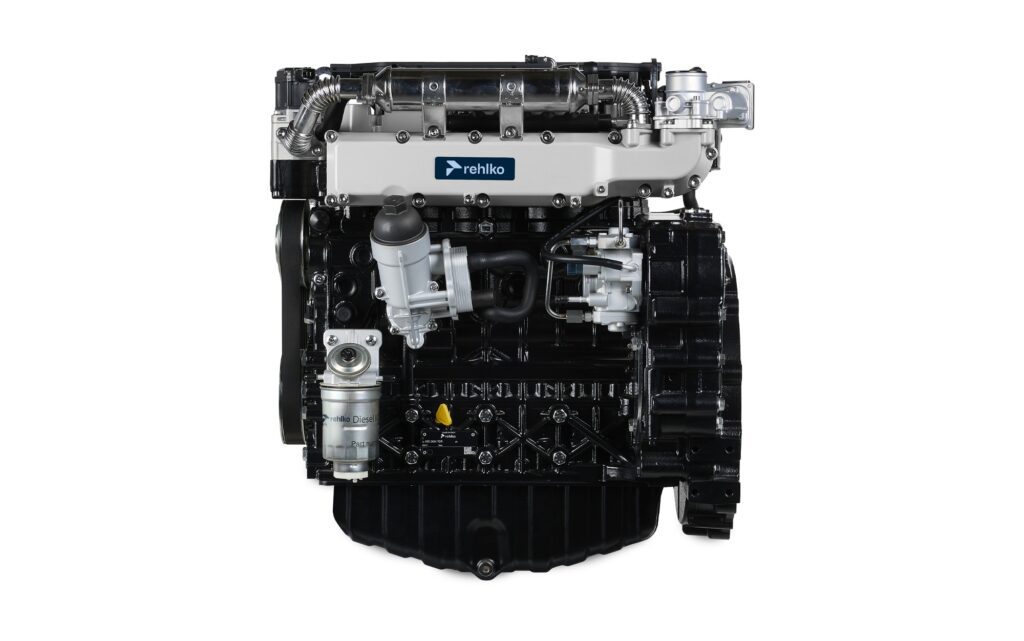

Rehlko KDI-TCP 3404E5/22E
Rehlko KDI-TCP 3404E5/22E is a 4-cylinder industrial diesel engine designed for demanding off-highway equipment and OEM power packs, supplied with UK technical support and fast quoting.
- Power
- 90 kW
- Speed
- 2200 rpm
- Max torque
- 550 Nm
- Dry weight
- 394 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KDI-TCP 3404E5/22E
The Rehlko KDI-TCP 3404E5/22E is a KDI-series 4-cylinder industrial diesel engine variant built for modern non-road machinery and packaged equipment where power density, durability and service access matter. It’s typically specified by OEMs and rebuilders who need a proven engine platform for continuous or heavy-duty cycles, with a configuration that supports straightforward integration into compact engine bays and power units.
If you’re replacing an existing KDI 3404 platform engine, the “E5/22E” designation is the key detail for matching the correct build specification and supply package. Share your current engine plate details (and the application), and we can help confirm the correct variant, ancillaries and installation requirements before quoting.
We can supply the engine in the configuration you need for your equipment build or replacement project, backed by practical UK support for selection, installation and after-sales.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 90 kW
- Speeds
- 2200 rpm
- Max torque
- 550 Nm @ 1400 rpm
- Use
- Industrial
Engine
- Cylinders
- 4
- Aspiration
- Turbo aftercooled
- Injection
- Direct (DI), common rail
- SAE connection
- SAE3/11.5
Emissions
- Standard
- EU Stage IV, US Tier 4 Final
- EGR
- No
- DOC
- Yes
- DPF
- Yes
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- Yes
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 726 mm
- Width
- 576 mm
- Height
- 816 mm
- Dry weight
- 394 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
Free datasheet
Your KDI-TCP 3404E5/22E, on one page.
Pick your set-up and we’ll email you a PDF datasheet with the full specification and your configuration, ready to share or add to a tender. Want a price too? Tick the box and the engine team will quote for it.
- Full Rehlko specification
- Your speed, start and application
- Dimensions and weight
- Prepared in your name
