Rehlko KDW Series · water-cooled diesel

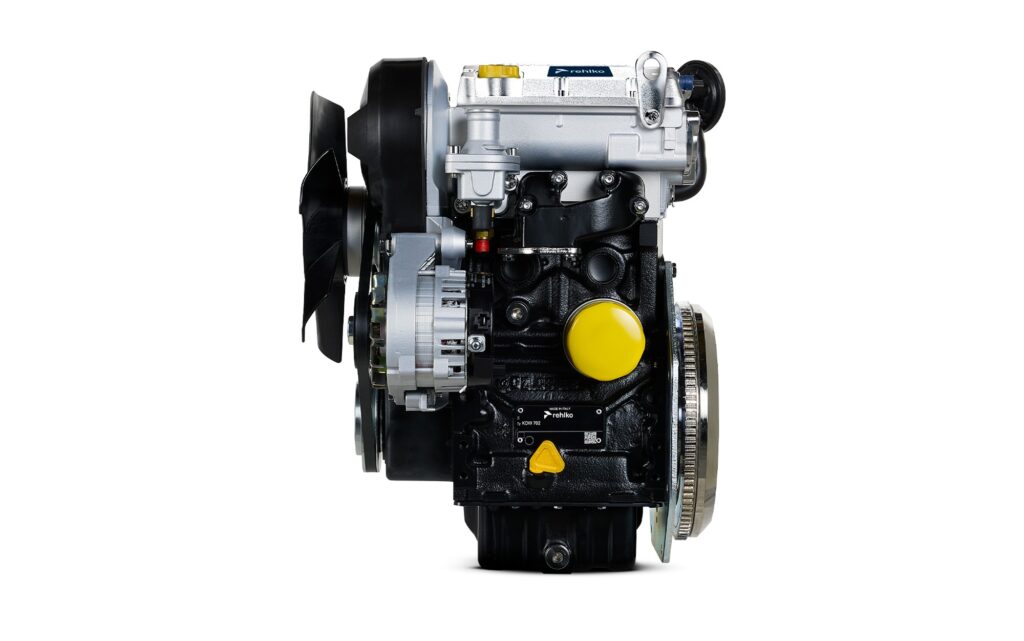

Rehlko KDW702 E536
Rehlko KDW702 E536 is a compact industrial diesel engine variant for non-road machinery and equipment packages, chosen for robust everyday performance, practical servicing and strong long-term parts support—ideal for OEM builds and replacement projects.
- Power
- 11.5 kW
- Speed
- 3600 rpm
- Max torque
- 37.8 Nm
- Dry weight
- 66 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KDW702 E536
The Rehlko KDW702 E536 is a KDW-series engine variant built for real-world non-road duty, where equipment owners care about three things: uptime, service practicality, and supportability. It’s commonly used in compact machinery and industrial equipment packages that run under variable loads and need predictable performance without unnecessary complexity.
This page is designed to support faster selection and quoting for the E536 designation specifically—useful when you’re matching an existing engine plate reference, replacing a like-for-like unit, or aligning with an OEM bill of materials. If you’re comparing variants, the quickest way to avoid mis-specification is to share your current engine reference (or equipment model), installation constraints and operating environment.
Request a quote and we’ll confirm the best-fit KDW702 E536 supply package, including the right documentation and ongoing technical support.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 11.5 kW
- Speeds
- 3600 rpm
- Max torque
- 37.8 Nm @ 2000 rpm
- Use
- Industrial
Engine
- Cylinders
- 2
- Aspiration
- Natural
- Injection
- Indirect (IDI), mechanical
- SAE connection
- Options available
Emissions
- Standard
- EU Stage V, US Tier 4 Final
- EGR
- Yes
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 424 mm
- Width
- 412 mm
- Height
- 519 mm
- Dry weight
- 66 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
Free datasheet
Your KDW702 E536, on one page.
Pick your set-up and we’ll email you a PDF datasheet with the full specification and your configuration, ready to share or add to a tender. Want a price too? Tick the box and the engine team will quote for it.
- Full Rehlko specification
- Your speed, start and application
- Dimensions and weight
- Prepared in your name
Genuine spare partsFilters, gaskets and service parts for Rehlko engines, sourced and shipped by us.Find a part →Servicing and set-upSpeed, governor and start set up before it ships, and help with servicing after.Ask the team →One shipment, worldwideAdd parts, a generator or other engines and we'll ship it all together, anywhere in the world.How it works →Technical helpFitting, running or fault-finding: talk to someone who knows the KDW702 E536.Get in touch →
