Rehlko KDW Series · water-cooled diesel

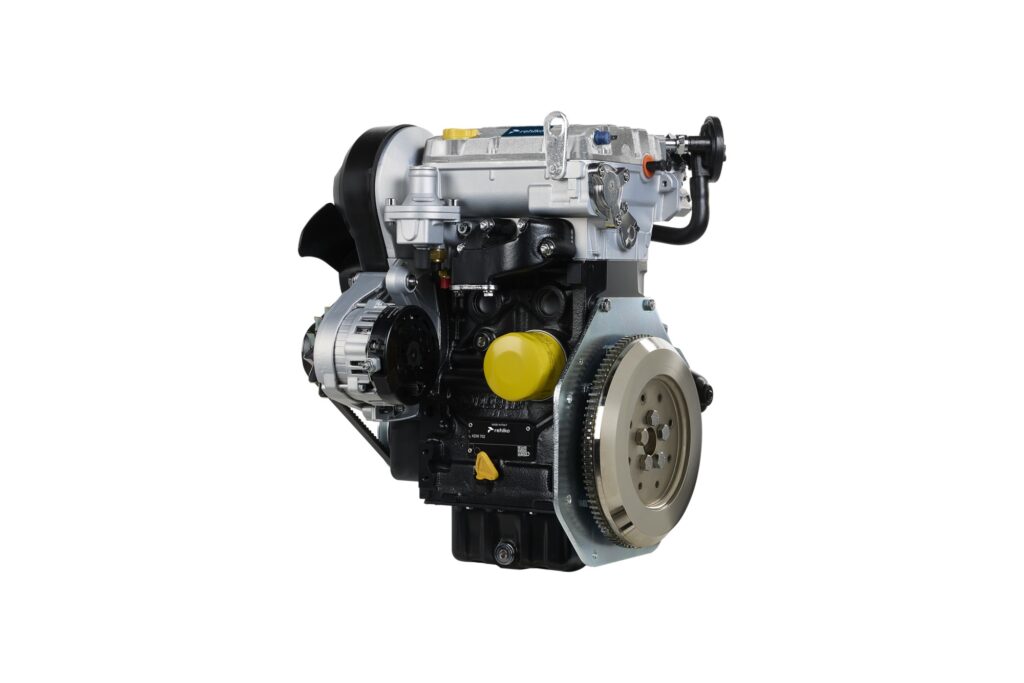

Rehlko KDW702 E530
Rehlko KDW702 E530 is a compact 2‑cylinder industrial diesel engine from the KDW range, suited to small equipment packages where simple installation, dependable operation and straightforward servicing are priorities.
- Power
- 11 kW
- Speed
- 3000 rpm
- Max torque
- 35 Nm
- Dry weight
- 66 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KDW702 E530
The Rehlko KDW702 E530 is a KDW-series 2-cylinder industrial diesel engine variant designed for compact machinery and packaged equipment. It’s typically selected where space is limited and you need a practical, serviceable diesel engine for day-to-day industrial duty — whether that’s in an OEM build, a power pack, or a replacement application.
The “KDW702” platform identifies the 2-cylinder KDW architecture, while the “E530” designation is the key detail for matching the correct build specification and supply package. For replacement projects, that variant code matters because it helps ensure the correct configuration and ancillaries are supplied to suit the existing installation.
If you share your application details and any engine plate information, we can help confirm the correct KDW702 variant and supply package before quoting, with UK technical support available for selection and after-sales.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 11 kW
- Speeds
- 3000 rpm
- Max torque
- 35 Nm @ 2200 rpm
- Use
- Industrial
Engine
- Cylinders
- 2
- Aspiration
- Natural
- Injection
- Indirect (IDI), mechanical
- SAE connection
- Options available
Emissions
- Standard
- EU Stage V
- EGR
- Yes
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 424 mm
- Width
- 412 mm
- Height
- 519 mm
- Dry weight
- 66 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
