Yanmar L-V Series · air-cooled diesel
Yanmar L48V

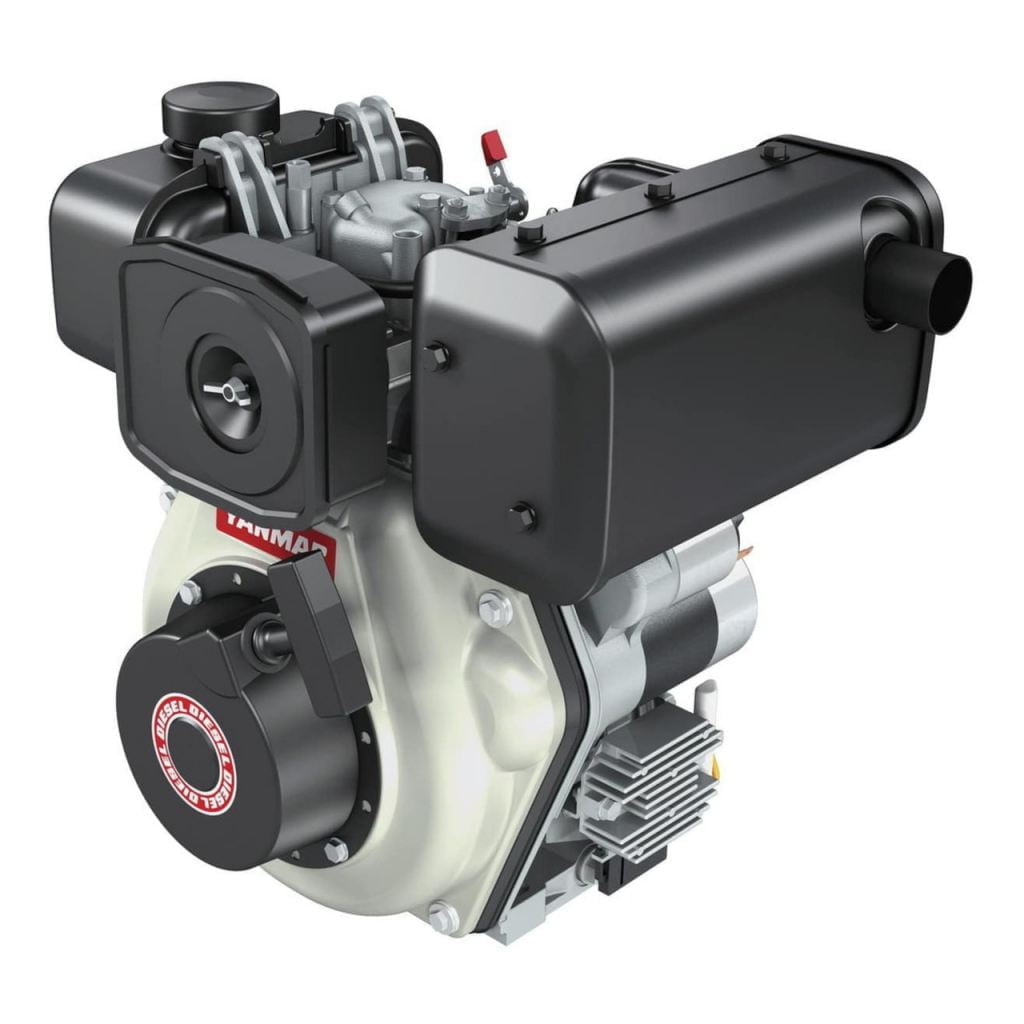

Yanmar L48V is a compact single-cylinder, air-cooled industrial diesel engine delivering up to 3.4 kW at 3600 rpm. With direct injection, 0.219L displacement and naturally aspirated design, it’s ideal for compact equipment packages needing dependable diesel power with straightforward installation and servicing.
- Power
- 3.4 kW
- Speed
- 3600 rpm
- Dry weight
- 34 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Yanmar L48V
The Yanmar L48V is a compact, air-cooled diesel engine designed for industrial equipment and packaged applications where simplicity, reliability and service access are priorities. It is a 1-cylinder engine with 0.219L displacement and direct injection combustion, delivering up to 3.4 kW at 3600 rpm. The air-cooled layout keeps installation straightforward and reduces cooling-system complexity, which is particularly useful in compact machinery and portable equipment packages.
For OEM builds and replacement projects, using the exact model code L48V is important for matching the correct supply configuration and installation details (mounting, shaft, governed speed requirement and start type). If you share your application and any existing engine plate information, we can confirm the correct configuration and quote the right package.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 3.4 kW
- Speeds
- 3600 rpm
- Use
- Industrial
Engine
- Cylinders
- 1
- Aspiration
- Natural
- Injection
- Direct (DI), mechanical
- SAE connection
- Non conventional
Emissions
- Standard
- EU Stage V
- EGR
- Yes
- DOC
- Yes
- DPF
- No
Cooling
- Type
- Air-cooled
- Radiator
- No
- Fan
- No
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 332 mm
- Width
- 448 mm
- Height
- 425 mm
- Dry weight
- 34 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
