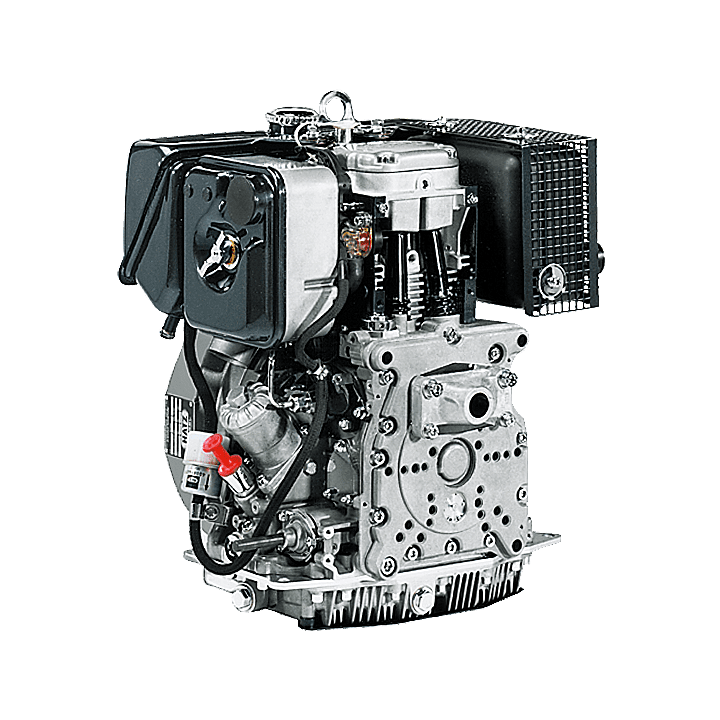

Hatz 1D50
Hatz 1D50 is a compact single-cylinder, air-cooled 4‑stroke diesel engine delivering up to 7.5 kW (10.1 hp) at 3000 rpm. It’s a strong fit for industrial equipment that needs dependable diesel power with simple packaging and straightforward servicing.
- Power
- 7.5 kW
- Speed
- 3000–3600 rpm
- Max torque
- 24.8 Nm
- Dry weight
- 83 kg
- Configured to your speed, start and shaft
- Genuine Hatz parts in stock, with diagrams online
- Talk it through: +44 (0) 1626 778 266
About the Hatz 1D50
The Hatz 1D50 is designed for demanding industrial applications where reliability and service access matter as much as performance. Its air-cooled layout keeps installation simple by removing the need for a liquid-cooling system, making it well suited to compact machinery and equipment that operates in harsh environments.
It delivers up to 7.5 kW (10.1 hp) at 3000 rpm, with usable output across working speeds including 7.2 kW (9.7 hp) at 2800 rpm and 6.8 kW (9.1 hp) at 2600 rpm. For lower-speed operation, it also supports 6.0 kW (8.0 hp) at 2300 rpm and 5.2 kW (7.0 hp) at 2000 rpm, helping you match the engine to real operating conditions rather than quoting only peak rpm.
For governed-speed duties, the 1D50 supports 3000 rpm constant speed, and it can also be selected for 1800 rpm and 1500 rpm applications where stable output is required.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 7.5 kW
- Speeds
- 3000, 3200, 3600 rpm
- Max torque
- 24.8 Nm @ 2000 rpm
- Use
- Generator drive, Industrial
Engine
- Cylinders
- 1
- Aspiration
- Natural
- Injection
- Direct (DI), mechanical
- SAE connection
- Options available
Emissions
- Standard
- EU Stage V
- EGR
- No
- DOC
- No
- DPF
- No
Cooling
- Type
- Air-cooled
- Radiator
- No
- Fan
- No
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 357 mm
- Width
- 432 mm
- Height
- 512 mm
- Dry weight
- 83 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
