Rehlko KDW Series · water-cooled diesel

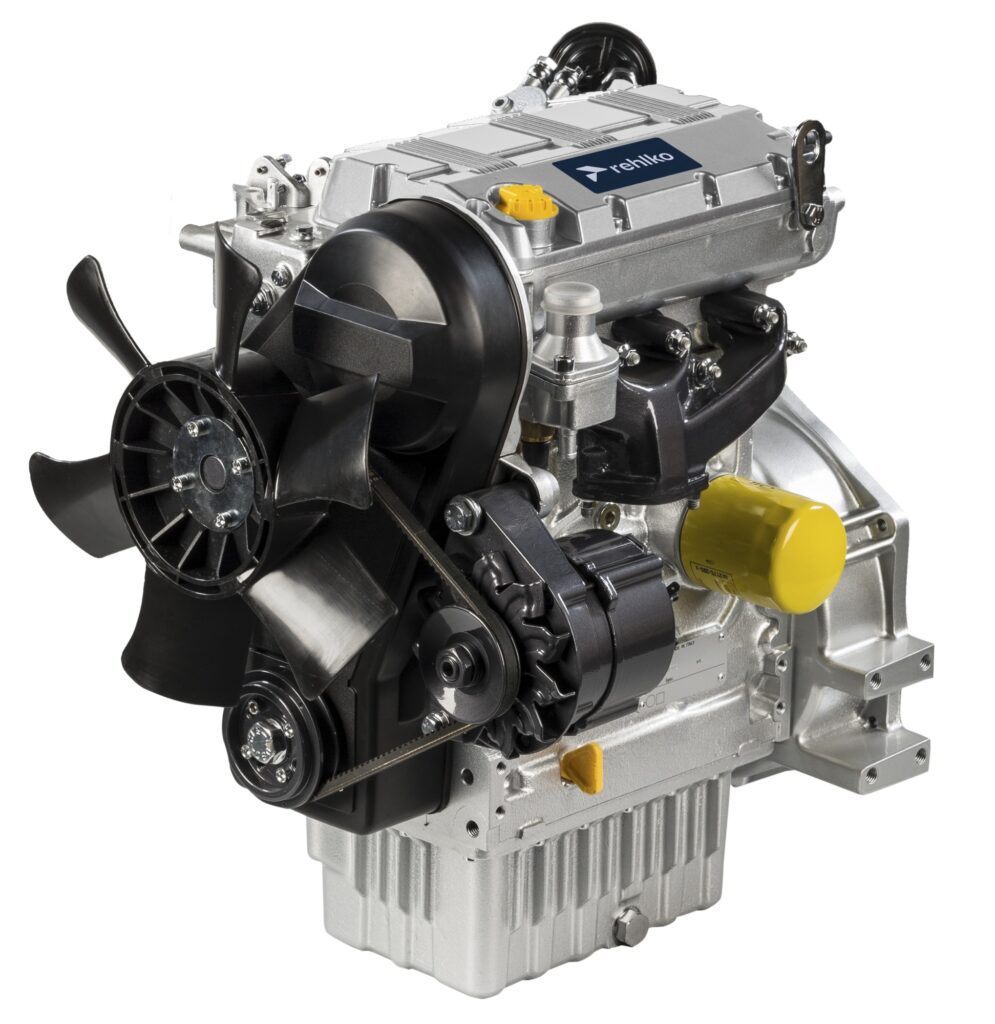

Rehlko KDW1003 E530
Rehlko KDW1003 E530 is a compact 3‑cylinder, liquid‑cooled industrial diesel engine delivering up to 18.0 kW at 3000 rpm and 50.0 Nm at 2200 rpm, suited to equipment packages that need dependable power with straightforward installation and servicing.
- Power
- 14.8 kW
- Speed
- 3000 rpm
- Max torque
- 50 Nm
- Dry weight
- 85 kg
- Configured to your speed, start and shaft
- Genuine parts and servicing support
- Talk it through: +44 (0) 1626 778 266
About the Rehlko KDW1003 E530
The Rehlko KDW1003 E530 is a KDW-series 3-cylinder industrial diesel engine variant designed for compact machinery and packaged equipment where reliability, practical servicing and clean integration matter. In this configuration it delivers up to 18.0 kW at 3000 rpm with a listed maximum torque of 50.0 Nm at 2200 rpm (measured to ISO 14396), making it a strong option for industrial duty where consistent, usable power is required from a compact footprint.
The “KDW1003” platform identifies the 3-cylinder KDW architecture, while the “E530” designation is the key detail for matching the correct build specification and supply package. That’s particularly important for replacement and repower projects, where selecting the correct variant helps ensure the right configuration and ancillaries are supplied to suit the existing installation and duty cycle.
If you share your application (equipment type, duty cycle and any engine plate details), we can confirm the correct KDW1003 variant and supply package before quoting, backed by UK technical support for selection and after-sales.
Every engine we supply is set up for its job before it leaves Teignmouth, and backed by the parts and people to keep it running.
Specification
Get this as a PDF datasheet →Performance
- Power
- 14.8 kW
- Speeds
- 3000 rpm
- Max torque
- 50 Nm @ 2200 rpm
- Use
- Industrial
Engine
- Cylinders
- 3
- Aspiration
- Natural
- Injection
- Indirect (IDI), mechanical
- SAE connection
- Options available
Emissions
- Standard
- EU Stage V, US Tier 4 Final
- EGR
- Yes
- DOC
- No
- DPF
- No
Cooling
- Type
- Water-cooled
- Radiator
- Yes
- Fan
- Yes
- Charge air cooler
- No
Figures are manufacturer published data and may change. We’ll confirm the final specification with your quote.
Dimensions
- Length
- 516 mm
- Width
- 412 mm
- Height
- 519 mm
- Dry weight
- 85 kg
Need an installation drawing? Ask and we’ll send the drawing for your configuration.
